Rotation Direction CCW and CW Single-phase AC Motor for High Speed Treadmill Machine

Name: Rotation Direction CCW and CW Singlephase AC Motor for High Speed Treadmill Machine
Brand: Yalop Motor
Price: 2.99 USD

Buy cheap Rotation Direction CCW and CW Single-phase AC Motor for High Speed Treadmill Machine product

Warranty : 3months-1year

Place of Origin : Fujian, China

Brand Name : Yalop Motor

Model Number : YLP AC6335

Type : Asynchronous Motor

Frequency : 50/60Hz

Phase : Single-phase

Protect Feature : Drip-proof

AC Voltage : 110-220VAC

Efficiency : IE 1

Product Name : 63 series universal motor

Rated speed : 11000rpm 12000rpm

Rated torque : 0.2N.m 0.3N.m 0.35N.m

Motor diameter : 63mm

Noise : 75dB

Shaft type : Threaded Shaft

Bearing : Ball bearing

Rotation direction : CCW and CW

Insulation class : B-H

Certification : CCC CE FCC

MOQ : 2000 pieces

Price : $2.99 - $8.89/pieces

Delivery Time : Standard product need 5-30days, a bit longer for customized products.

Payment Terms : T/T, L/C, D/P D/A, Credit Card, PayPal, Western Union

Contact Now

Product Description

Rotation Direction CCW and CW Single-phase AC Motor for High Speed Treadmill Machine

Specification

item	AC motor
Warranty	3months-1year
Place of Origin	Fujian, China
Brand Name	Yalop Motor
Model Number	YLP AC6335
Type	Asynchronous Motor
Frequency	50/60Hz
Phase	Single-phase
Protect Feature	Drip-proof
AC Voltage	110-220VAC
Efficiency	IE 1
Product Name	63 series universal motor
Rated speed	11000rpm 12000rpm
Rated torque	0.2N.m 0.3N.m 0.35N.m
Motor diameter	63mm
Noise	75dB
Shaft type	Threaded Shaft
Bearing	Ball bearing
Rotation direction	CCW and CW
Insulation class	B-H
Certification	CCC CE FCC

Packing & Delivery

Company Profile

Zhangzhou Yalop Motor Technology Co., Ltd. specialising in the development and production of treadmill permanent magnet DC motors,lifting motors, massage chair motors, all kinds of gear motors, brushless motors and small household appliances products.
With an annual output of 1 million units of motor technical strength and processing capacity, the products are exported to Europe and the United States, in recent years, through the continuous upgrading of the product and the market
In 2005, we faced the domestic and international markets with a brand new attitude, and won the unanimous praise from the industry for our superior quality and market share.
We are committed to the continuous improvement of our quality management system.
We will be committed to the continuous improvement of the quality management system, scientific management, and gradually improve the service price system, and constantly pursue product innovation, technological upgrading.
Pursuing product innovation, technological upgrading, broadening the scope of business, is committed to providing our customers with more advanced, more favourable products and services.

FAQ

Q: Do you provide samples?
A: Yes. Sample is available for testing.

Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.

Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you need.

Q: How to ship to us?
A: It is available by air, or by sea, or by train.

Q：What is the special motor for treadmill?
A:The special motor for treadmill is the electric motor that drives the treadmill to drive the treadmill belt power. It provides
the necessary power to enable the treadmill to provide an exercise platform with varying speeds and resistance.

Q: What are the types of motors for treadmills?
A:Motors for treadmills are usually divided into two types: DC motors and AC motors. DC motors provide consistently high torque and have a greater speed range and variable speed control. AC motors, on the other hand, are typically quieter, more reliable, and easier to maintain.

Q: How do I choose the power of a motor for a treadmill?
A:The power of a motor for a treadmill is usually expressed in horsepower (HP). Choosing the appropriate power depends on how often the treadmill is used, the user's weight and the maximum speed required. Generally speaking, the power of regular home treadmills ranges from 1.5 to 3.0 HP.

Q: How to judge whether a motor for treadmills is good or not?
A:The quality and performance of motors for treadmills can be assessed from the following aspects: reliability of the motor, noise level, maximum load carrying capacity, smoothness of variable speed control, and versatility of functions. Refer to product specifications and user reviews when selecting a motor.

Q: Do treadmill motors require maintenance?
A:Yes, treadmill motors require regular maintenance to maintain their optimal performance. The main maintenance tasks include cleaning the motor casing, checking the ventilation of the fan and motor, and lubricating the mechanical parts. The specific manual can be found in the treadmill's instruction manual.

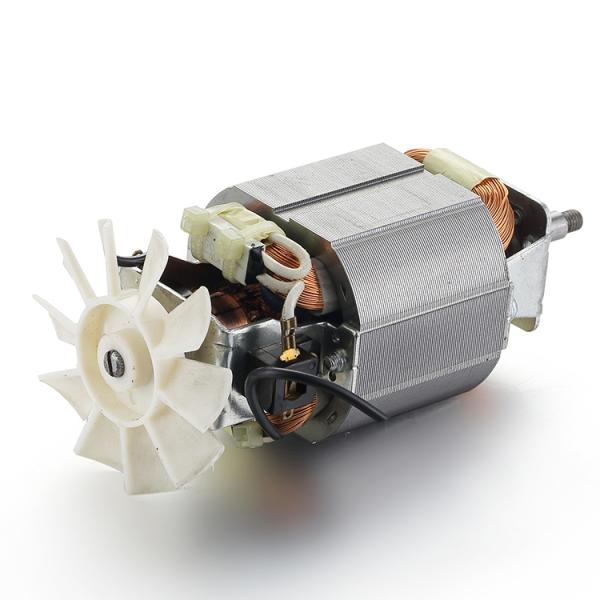

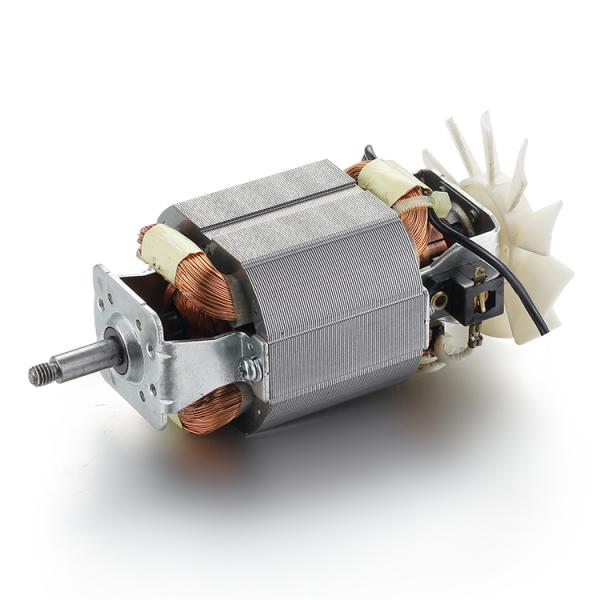

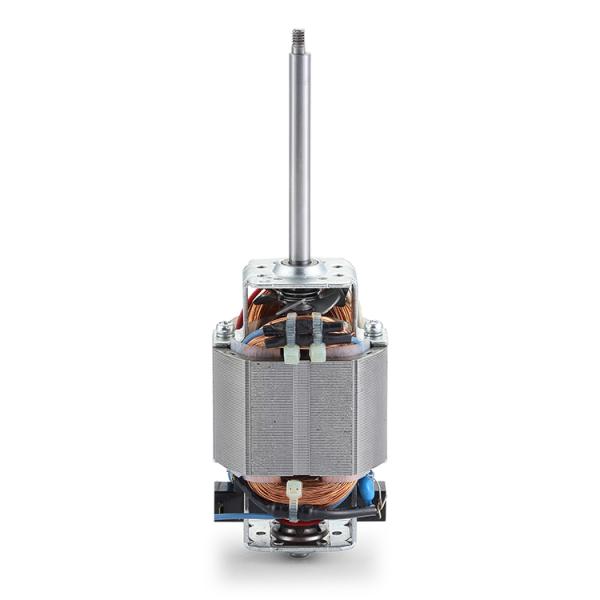

Rotation Direction CCW and CW Single-phase AC Motor for High Speed Treadmill Machine Images
